Deprag High Power Air Motors
Power Line Air Motors
Item No. 68-xxx
17980
POA
Description

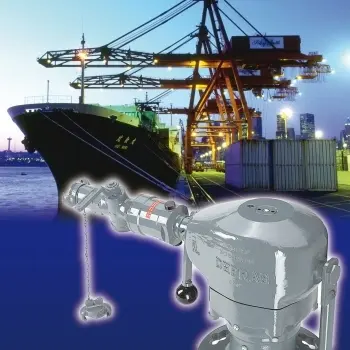

Deprag's range of Power Line air motors consists of a comprehensive range of motors from 1.6kW upto 18kW.

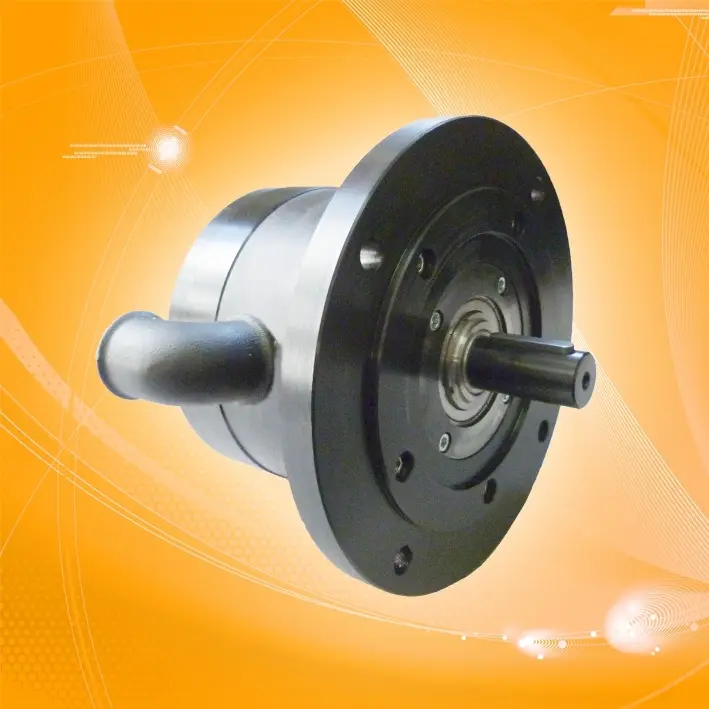

Modern IEC flange motors are available in 1.6kW, 3.2kW, 5.0kW, 6.0kW, 9 kW and 18kW sizes and most can be supplied with or without gearboxes.
Deprag have just released the following ATEX approved motors with and without planetary gearing and IEC flanges designed to directly replace electric motors in many cases:
| Model | IEC Flange | Power | Nom Speed | Nom Torque | Start Torque |
|---|---|---|---|---|---|
| 68X-001F09 | 71 | 1.6kW | 4500rpm | 3.3Nm | 5Nm |
| 68X-003F09 | 80 | 1.6kW | 1500rpm | 10.2Nm | 15.3Nm |
| 68X-007F09 | 80 | 1.6kW | 700rpm | 21.5Nm | 32.2Nm |
| 68X-001F11 | 80 | 3.2kW | 3500rpm | 8.7Nm | 13.1Nm |
| 68X-002F11 | 90 | 3.2kW | 1500rpm | 20.4Nm | 30.6Nm |
| 68X-005F11 | 90 | 3.2kW | 700rpm | 43.6Nm | 65.5Nm |
| 68X-001F13 | 90 | 5.0kW | 3000rpm | 15.9Nm | 23.9Nm |
| 68X-002F13 | 100 | 5.0kW | 1500rpm | 32Nm | 48Nm |
| 68X-004F13 | 100 | 5.0kW | 725rpm | 66Nm | 99Nm |
| 68X-001F15 | 90 | 6.0kW | 3500rpm | 16.4Nm | 24.6Nm |
| 68X-002F15 | 100 | 6.0kW | 1700rpm | 33.7Nm | 50.6Nm |
| 68X-004F15 | 100 | 6.0kW | 800rpm | 71Nm | 107Nm |
| 68X-001F55 | 112A | 9.0kW | 3000rpm | 28.6Nm | 43Nm |
| 68X-001F65 | 112A | 18.0kW | 3000rpm | 57Nm | 85Nm |
Please note that there are numerous other motors and gearing available. Please download the full catalogue below, or contact us for further information.
